DIESEL FORKLIFTS
TCM | FHD30T3A

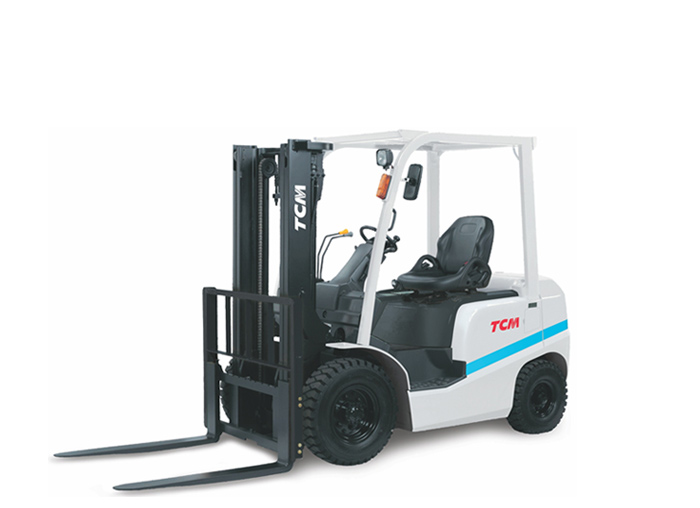

TCM 3 TON DIESEL FORKLIFT
| Model | FHD30T3A |
| Load Capacity | 3.0 ton |
| Load Center | 500 mm |
| Lifting Height | Tripleks 4800mm |
| Free Lifting Height | 1050m. |
| Sideshift | Included |
| Height, Mast Lowered | 2245mm. |
| Height, Mast Extended | 6060mm.(Support rest is included) |
| Fork Length | 1220mm |
| Machine Length | 2705mm. (Fork not included) |
| Machine Width | 1225mm |
| Turning Radius | 2400mm |
| Aisle Width with Pallet | 4280 mm |
| Engine Brand/Model | GCT / QD32 |
| Engine Power | 44.0 kW / 2300 r.p.m. |
| Engine Volume / Cylinder | 3153 cc / 4 |
| Tork | 189N-m(kgf-m)/1800r.p.m. |
| Travel Speed (loaded/unloaded) | 19.5 / 19.5 km/h |
| Lifting Speed (loaded/unloaded) | 0.52 / 0.59 m/s |
| Lowering Speed (loaded/unloaded) | 0.45 / 0.45 m/s |
| Max. Gradient Capacity | %24 - %20 (loaded - unloaded) |
| Origin | JAPONYA |
Accecories & main features:
- Serbest kaldırmayı sağlayan bir adet orta piston yerine asansörün iç kızağının iç sağ ve sol tarafına yerleştirilmiş iki adet piston sayesinde geniş görüş imkanı sağlanmıştır.
- Modern & stylish control panel with Led warning lights.
- High load support
- Minimum loss of power in the TCM gearbox, it is also possible to provide satisfactory efficiency with low torque engines.
- Interlock system is activated when the operator stands up from the seat so that travel, lift & carrying are locked. By this way possible risk of an accident is prevented.
- Tilt cylinders are placed under the base & the base area is expanded %45 & by this design it provides operator a comfortable space.
- With adjustable suspension seat comfortable ride is provided.
- With removable side covers, easy access to all engine parts during maintenance.
- Ergonomic use with the help of semi-circular steering wheel.
